Ferrite Cores Tdk (Epcos) B67345B0001X087
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
Ferrite Core U N87 1pc
Item
404019112
Part No.
B67345B0001X087
Manufacturer
EPCOS TDK
Non disponibile
icon
After-sales support
icon
Stock availability
Description

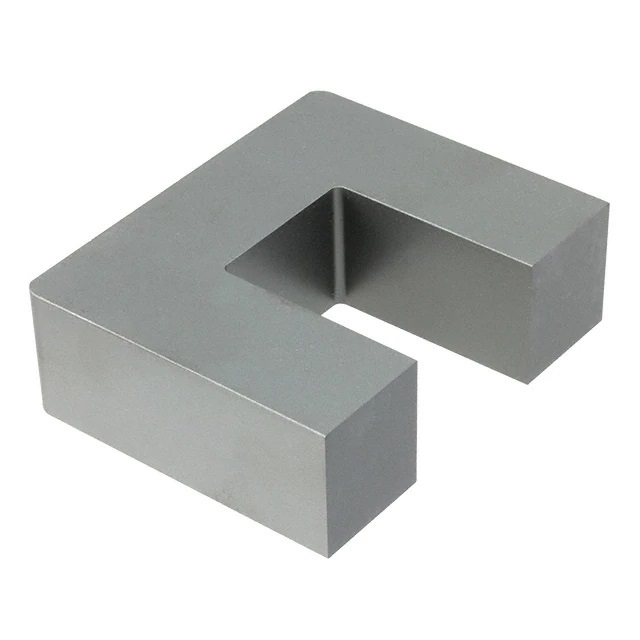

Uncoated N87 Ferrite Core U Type
Technical documents
| SKU | 404019112 |
| AVG leadtime (calendar days) | 126 |
| Core/Magnetic Factor (mm⁻¹) | 0.42 |
| Country of origin | CZ CZE CZECH REPUBLIC |
| Effective Area | 840.00 mm² |
| Effective Length | 354.00 mm |
| Effective Magnetic Volume | 297,000.00 mm³ |
| Effective Permeability | 1900 |
| Eu Tariff Code (TARIC) | 85049011 |
| External Height | 76.00 mm |
| External length | 93.00 mm |
| External Width | 30.00 mm |
| Inductance μH | 5.7 |
| Initial Permeability | 2200 |
| Inside Height | 48.00 mm |
| Inside Length | 34.60 mm |
| Lead time in order confirmations | Disponibile dalla settimana 28 |
| Manufacturer Part Number | B67345B0001X087 |
| Model | B67345B1X87 |
| Saturation Magnetic Flux Density (@100°C) | 390 |
| Selling quantity | 8 |
| Selling UoM | Pezzo |
| Short Description | Ferrite Core U N87 1pc |
| Tolerance | -20%, +30% |
| Coating/Finish | Uncoated |
| Core Shape | U |
| Gap | Ungapped |
| Material | N87 |
