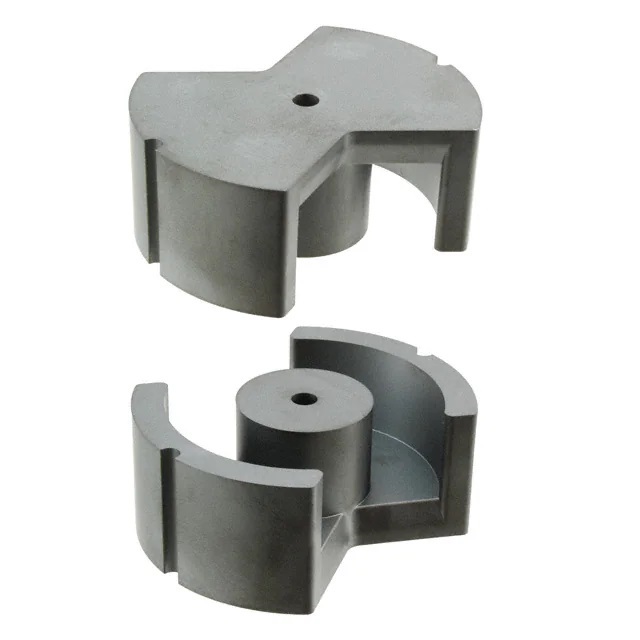

Ferrite Cores Tdk (Epcos) B65686A0000R027
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
Ferrite Core PM 10uH N27 2pcs
Item
404017561
Part No.
B65686A0000R027
Manufacturer
EPCOS TDK
Non disponibile
icon
After-sales support
icon
Stock availability
Description
Uncoated N27 Ferrite Core PM Type
Technical documents
| SKU | 404017561 |
| AVG leadtime (calendar days) | 154 |
| Core/Magnetic Factor (mm⁻¹) | 0.162 |
| Country of origin | CZ CZE CZECH REPUBLIC |
| Effective Area | 790.00 mm² |
| Effective Length | 128.00 mm |
| Effective Magnetic Volume | 101,000.00 mm³ |
| Effective Permeability | 1290 |
| Eu Tariff Code (TARIC) | 85049011 |
| External diameter | 74.00 mm |
| External Height | 59.00 mm |
| Inductance μH | 10 |
| Initial Permeability | 2000 |
| Inside Height | 40.70 mm |
| Internal diameter | 29.50 mm |
| Manufacturer Part Number | B65686A0000R027 |
| Model | B65686AR27 |
| Saturation Magnetic Flux Density (@100°C) | 410 |
| Selling quantity | 10 |
| Selling UoM | Pezzo |
| Short Description | Ferrite Core PM 10uH N27 2pcs |
| Tolerance | -20%, +30% |
| Coating/Finish | Uncoated |
| Core Shape | PM |
| Gap | Ungapped |
| Material | N27 |
