Chokes Tdk (Epcos) B82721K2152N001

VAT incl.

00,00 €* 00,00 €* previously 0

Subscription

CMC 3.3mH 1.5A 2LN TH

Art

404021496

Sn Pcs

B82721K2152N001

Manufacturer

EPCOS TDK

Non disponibile

icon After-sales support

icon Stock availability

Description

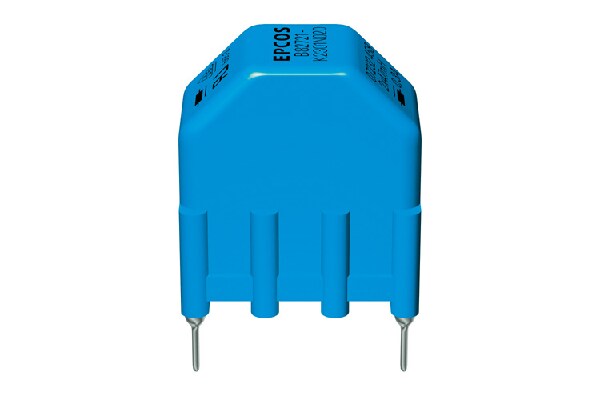

3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 180mOhm (Typ)

SKU	404021496
AVG leadtime (calendar days)	56
Country of origin	HU HUN HUNGARY
Current Rating (Metric)	1.50 A
DC Resistance	180.00 mΩ
Eu Tariff Code (TARIC)	85045000
External length	18.20 mm
External Width	20.90 mm
Inductance mH	3.3
Lead Diameter (mm)	0.7
Manufacturer Part Number	B82721K2152N001
Maximum Operating temperature	125.00 °C
Lead Spacing (mm)	10
Lead Spacing (2nd)	15
Minimum Operating Temperature	-40.00 °C
Model	B82721K2152N1
Number of lines	2
Selling quantity	720
Selling UoM	Pezzo
Short Description	CMC 3.3mH 1.5A 2LN TH
Voltage Rating AC (VAC)	250
Withstand/Test Voltage (V)	1.5 kVAC
Tolerance	± 30%
Filter Type	Power Line
Material	Ferrite
Package/Case	4 PC Pin, Tray, Vertical
Mounting type	Through Hole, Vertical Mount
Number of channels	1
Shielding type	Shielded
Termination Style	Radial
