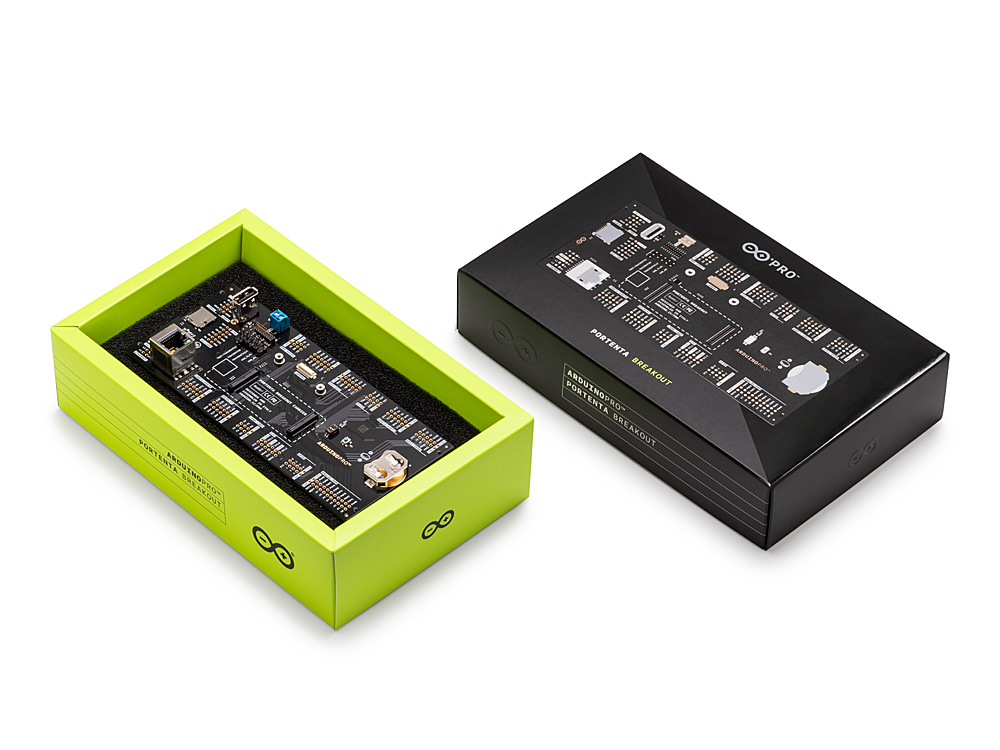

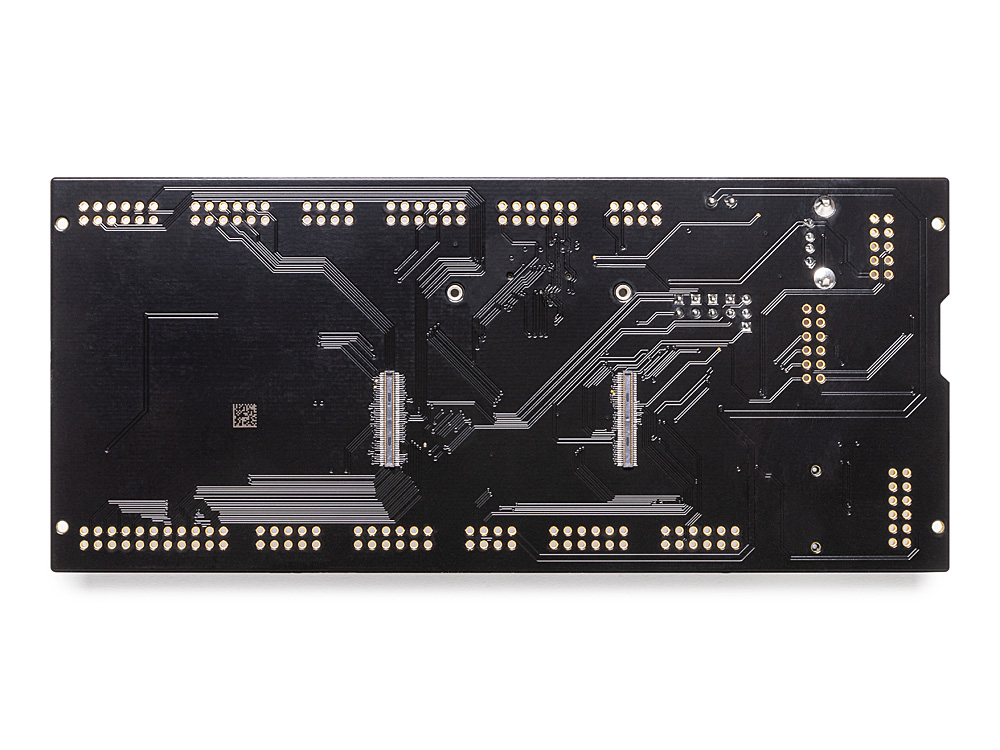

Arduino ASX00031 Portenta Breakoutboard Board
Portenta Breakout board is designed to help hardware engineers and makers to prototype and help test devices connections and capacity within the Portenta family boards
Descrizione
Descrizione
Portenta Breakout board is designed to help hardware engineers and makers to prototype and help test devices connections and capacity within the Portenta family boards (e.g. the Portenta H7).
It makes all high-density connectors’ signals individually accessible, making it quick and easy to connect and test external hardware components and devices as normally needed during development in the lab.
Target areas: Prototyping
Application examples
This product is designed to work alongside the Portenta family. Please check the Getting Started guide of your Portenta board.
Product Development: The Portenta Breakout board reduces development time for industrial grade solution automation based on the Portenta line
Technical Education: The Portenta Breakout board can act as the first point of entry for technician education in industrial grade control and embedded systems.
Features
● Power ON Button
● Boot mode DIP switch
● Connectors
- USBA
- RJ45 up to 1Gb/s
- Micro SD card
- MIPI 20T JTAG with trace capability
● Power
- CR2032 RTC Lithium Battery backup
- External power terminal block
● I/O
- Break out all Portenta High Density connector signals
- Male/female HD connectors allow interposing breakout between Portenta andshield to debug signals
● Compatibility
- Standard Portenta High Density connector pinout
● Safety information
- Class A
Scheda tecnica
| Articolo | 670047527 |
| Tempo medio consegna (giorni calendario) | 25 |
| Paese di provenienza | 86 |
| Codice TARIC | 85429000 |
| Manufacturer Part Number | ASX00031 |
| Quantità di vendita | 1 |
| Unità di Misura di vendita | PZ |
| Descrizione breve | Portenta Breakout board is designed to help hardware engineers and makers to prototype and help test devices connections and capacity within the Portenta family boards |
Documenti tecnici
